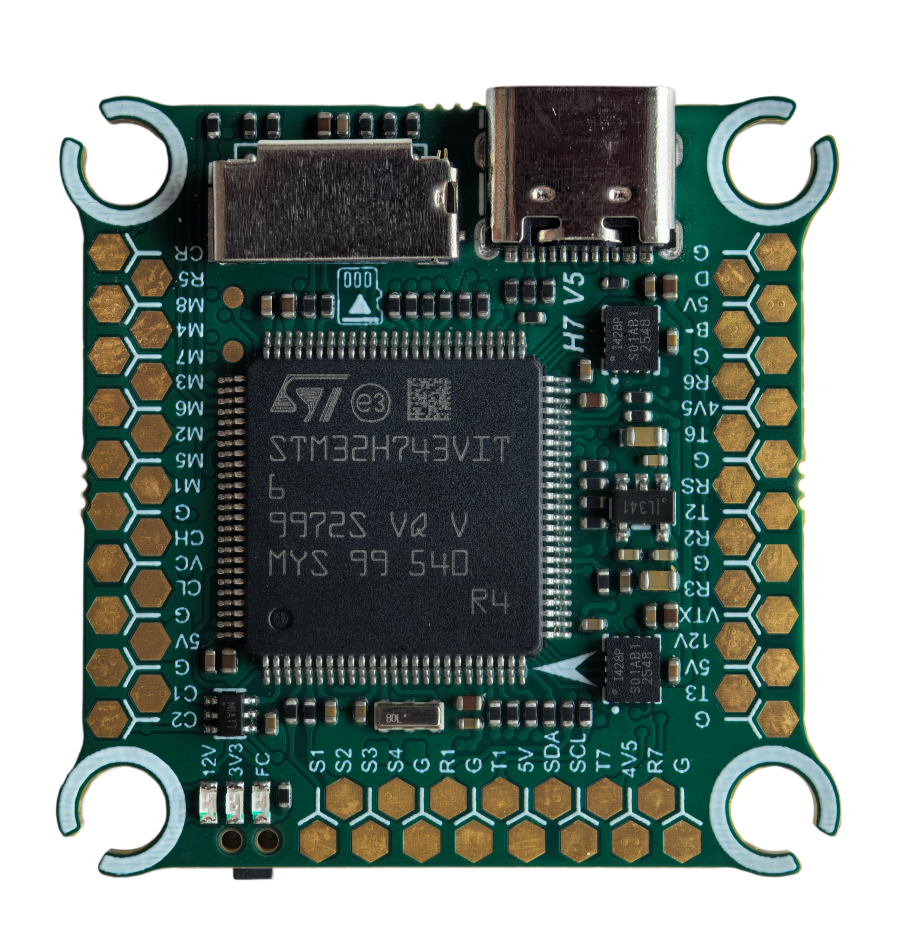

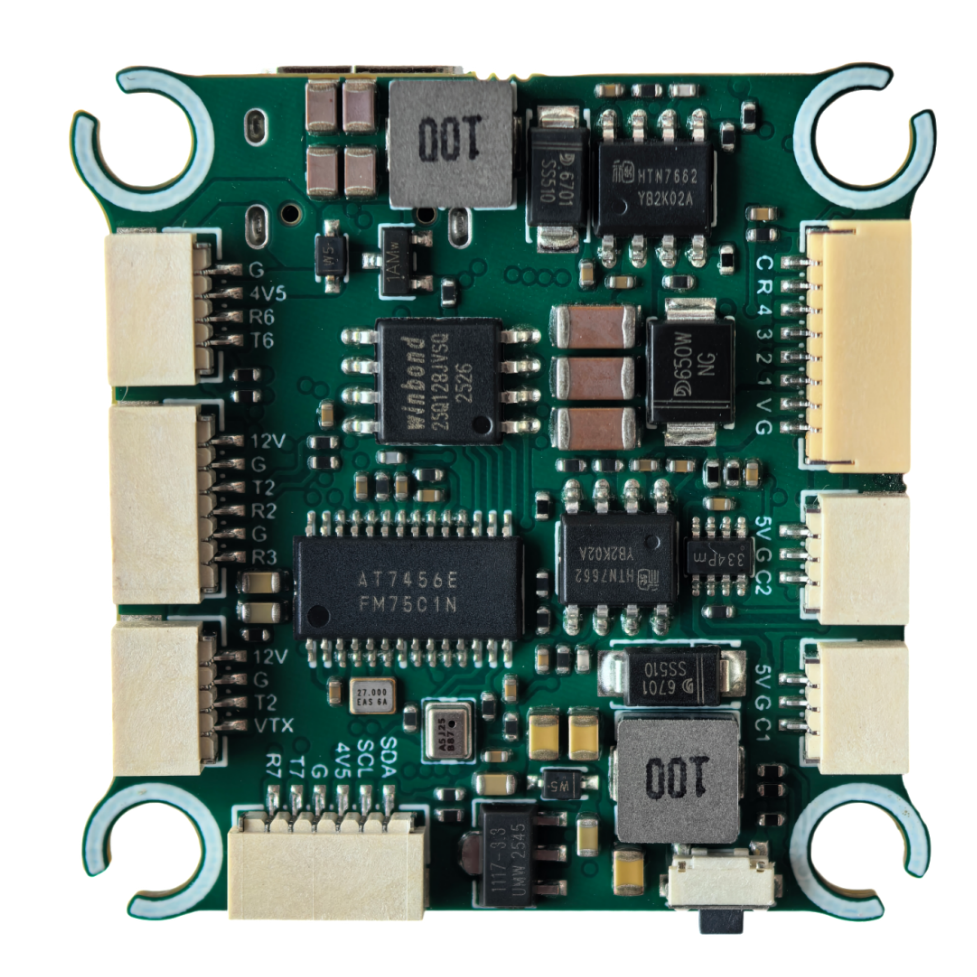

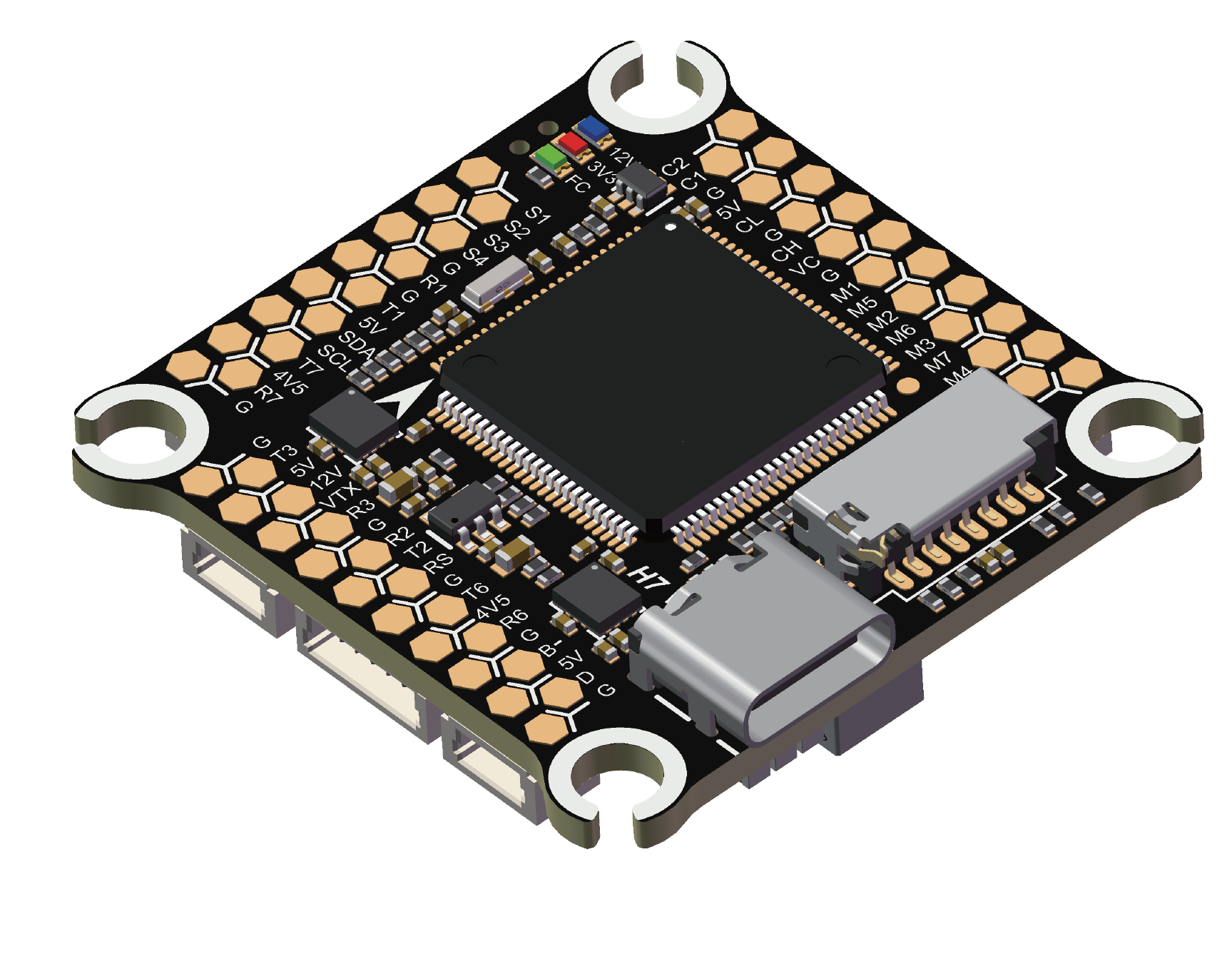

YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo

SKU:
YuntuFPV H743v5  Flight Controller Performance King, Dual Gyro, Full Compatibility with Mainstream Firmware 3-12S 30.5x30.5mm Dual camera

OEM service custom logo

0.0 (0 Reviews)
0 Sold
$35.00 $32.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
Add to Favorites (0)
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
1/1
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • YuntuFPV H743 V5 Flight Controller Dual ICM-42688 Motor output 8 3-12S 30.5x30.5mm Dual camera OEM service custom logo
  • Description


Flight control parameters
Input: 3-12S
MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
IMU: ICM42688p (with external clock)
Blackbox: MicroSD card socket (SDIO) & SPI NAND 16MB
3x LEDs for FC STATUS and 3.3V indicator
Baro: SPL06-001
OSD: AT7456E
7x Uarts (1,2,3,4,6,7,8)
10x PWM outputs
1x I2C
1x CAN
3x ADC
USB Type-C
2x JST-SH1.0_8pin connector
Dual Camera Inputs switch(USER1)
BEC 5V: 2.5A
BEC 9V: 2.5A
VCC_PAD
FC Firmware:Betaflight YuntuH7V2
Support Ardupilot

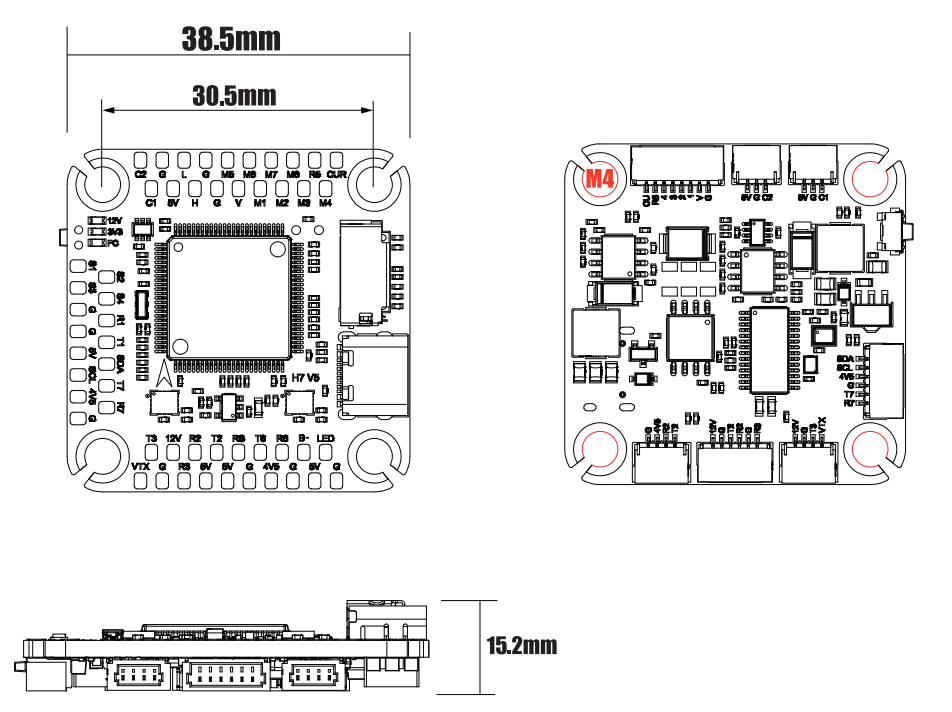

Mounting:30.5x30.5/M4
Size:37X37mm
Weight: 9g

Accessories list:
8P line*1,XT60 power cord*1,CRSF Receiver 4P Cable*1,4P to 6P VTX Cable*1,GPs 6PCable*1,DJl6P Cable*1, Camera 3p lines*2,Buzzer/LED 4P line*1.
