ESCparameters

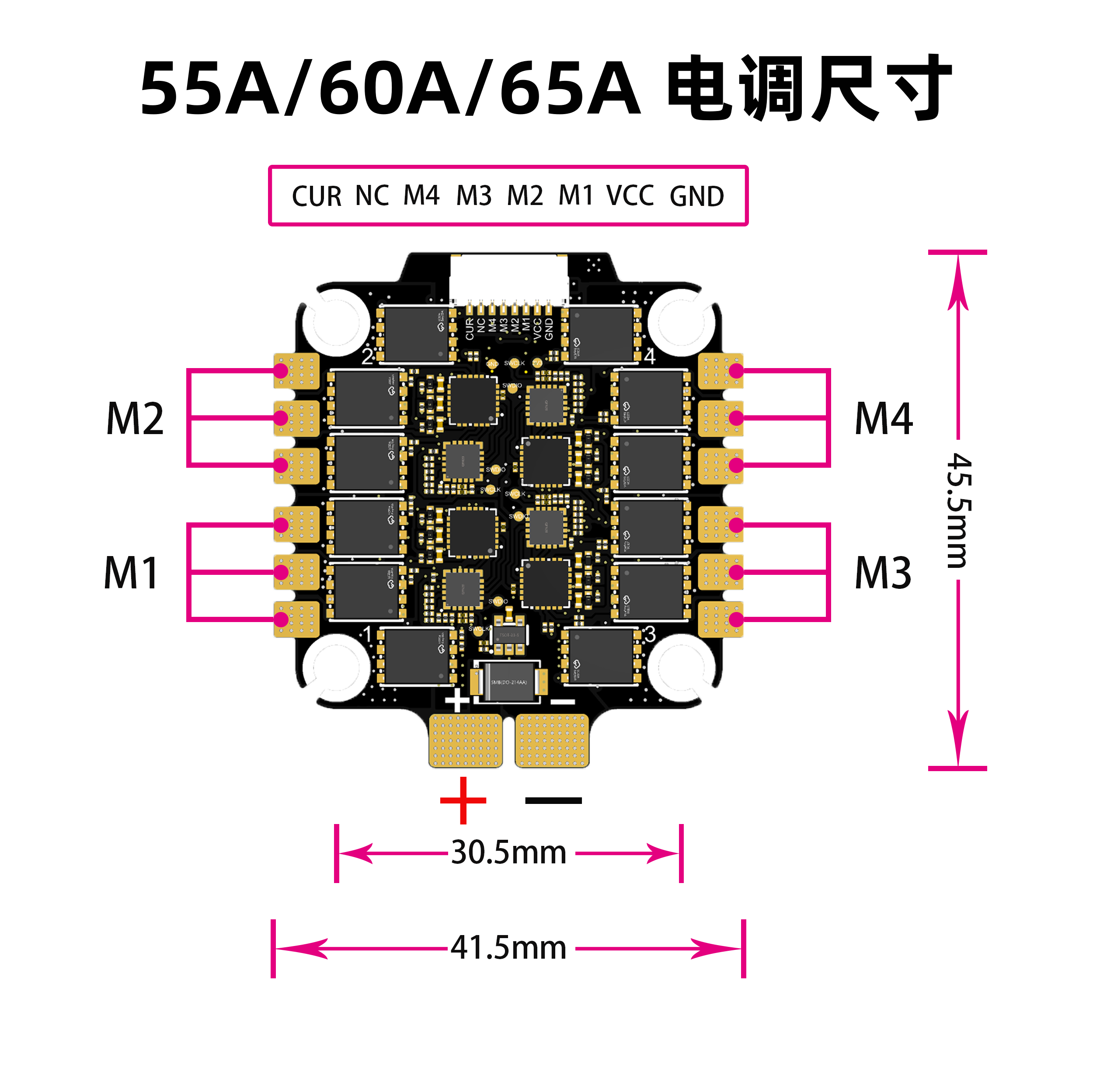

ESCsize:45.5mm*41.5*6.4mm
ESCNetWeight:15.05g
Fixed hole spacing:30.5mm-30.5mm &4mm
Continuous Current: 65A
Maximum Current:75A(sustainable for 10S)
Input Voltage:3-8S
Current Ratio:100
Firmware:BLHeli_S E_X_40
Assistant software:BLHeliSuite16.7.14.9.0.3
Drive signalsupport:PWM,Oneshot125,
Oneshot42,Multishot,Dshot150, Dshot300, Dshot600
Accessories list:
(M3x25mm screw)*4,M3 Nylon Nut*4,Capacitance(35V1000UF)*1,M3 Red Shock AbsorbingBall*8,8P line*1,XT60 power cord*1
Product features
1.The PCB adopts high-end 6-layer 2oZ thick copper skin, high-end resin plug-hole PCB production technology, dual-pad design, stronger overcurrent resistance and good heat dissipation.
2.MOS adopts imported 40V high current resistance mos, which has a long life and strong load capacity.
3.It adopts industrial-grade LDO, which is resistant to high temperature.
4.Using high-quality Japanese Murata capacitors, strong filtering performance
