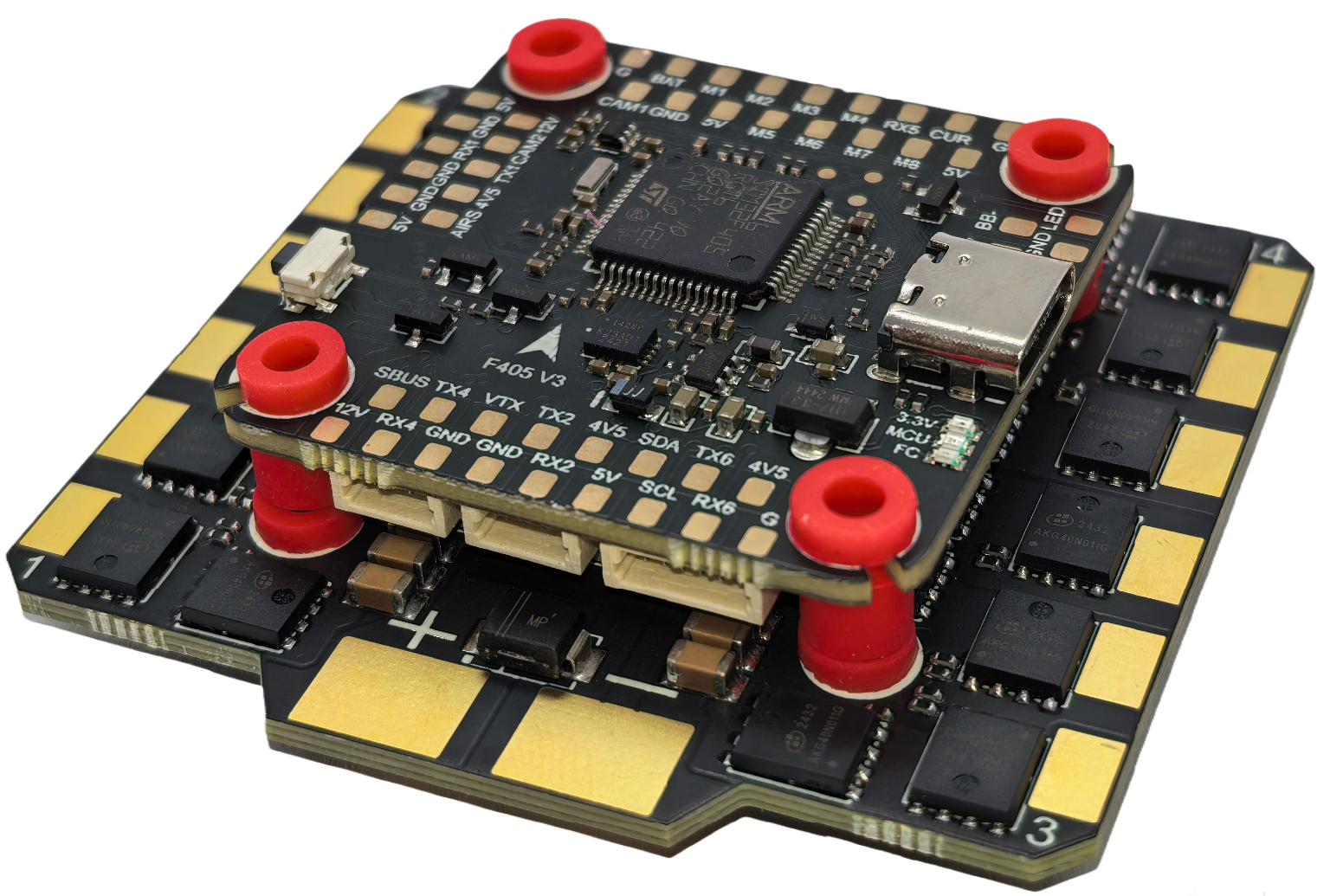

F405v3 BLs8 80A YunTuFPV Stack Flight Controller 3-8S 30.5x30.5mm 4-in-1 ESC OEM service custom logo

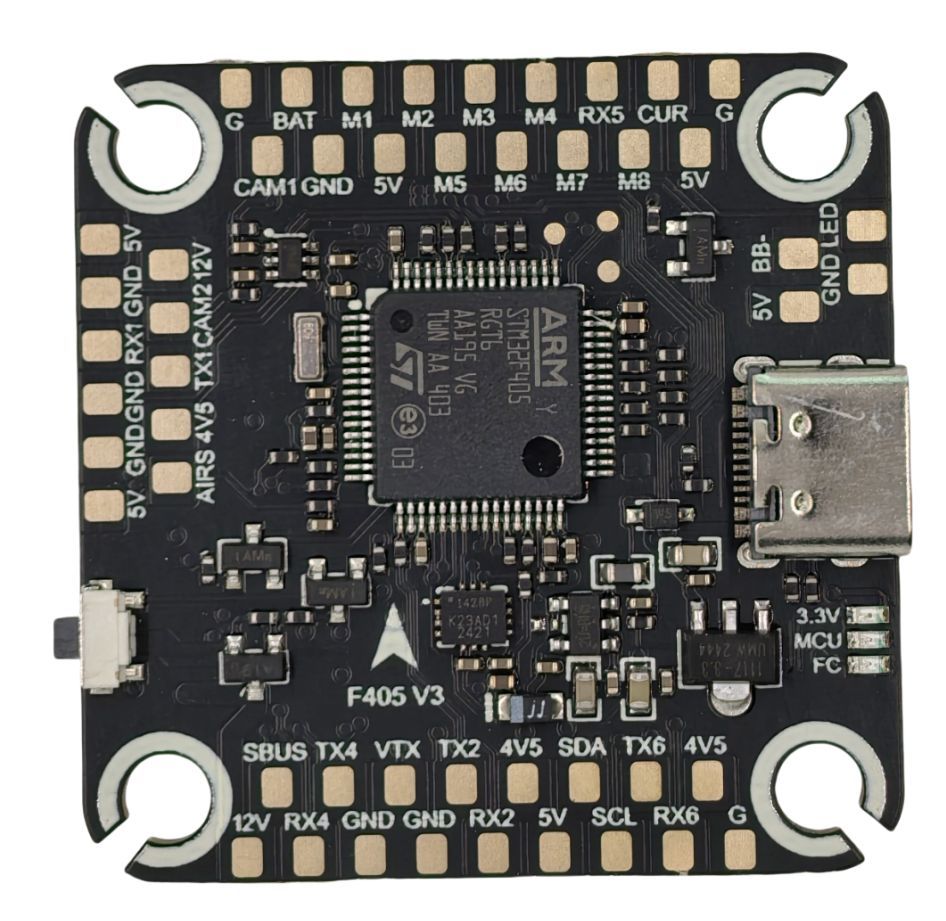

Flight control parameters
Flight control dimensions: 39.8 * 38.7 * 8mm.
Net weight of flight controller: 10g
Mounting hole spacing: 30.5 * 30.5mm p4mm
MCU:STM32F405RGT6
 IMU(Gyro):ICM42688P
Barometer: SPL06
BEC:5V/3A; 12V/2.5A
Black box: Storage:16M
Input voltage:3-8S
Firmware:YunTuF405v3
Uartserial port: 6
SBUS serial port: UART3
6-Pin sky terminal: 6-Pin DJlAir Unit Plug
External device plug-in socket:External device direct plug
Supported Flight Controller Firmware: BetaFlight (Default),INAV,APM

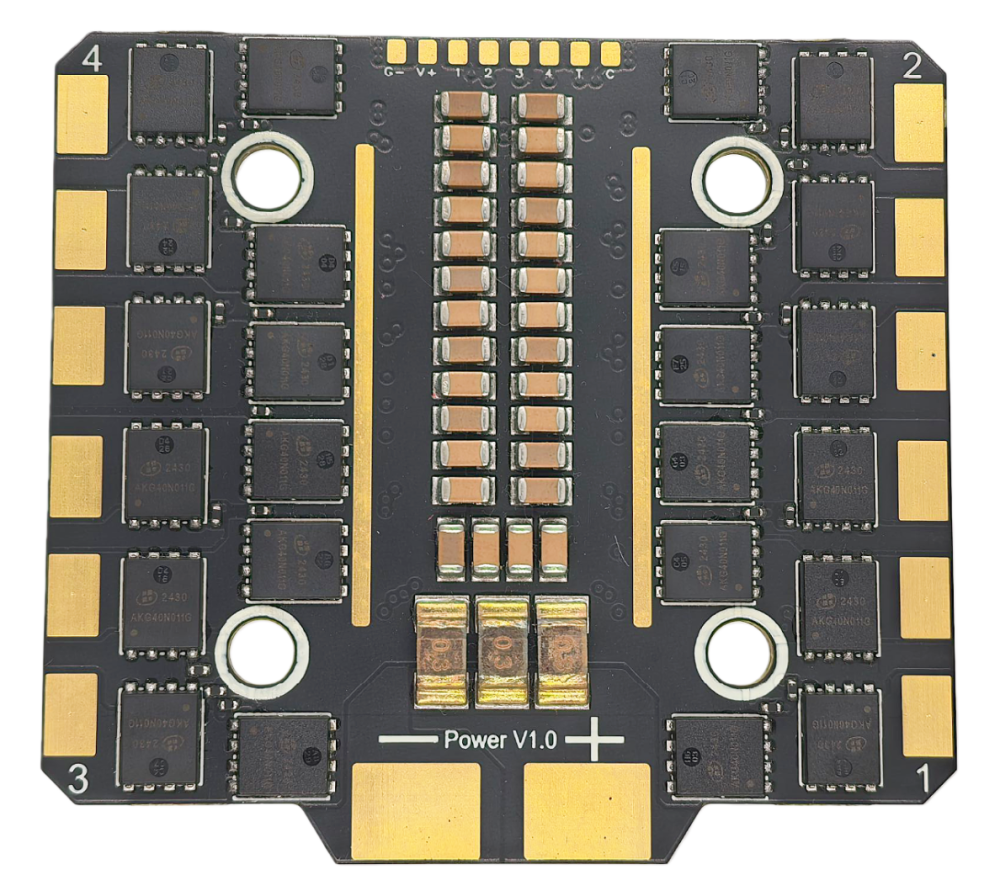

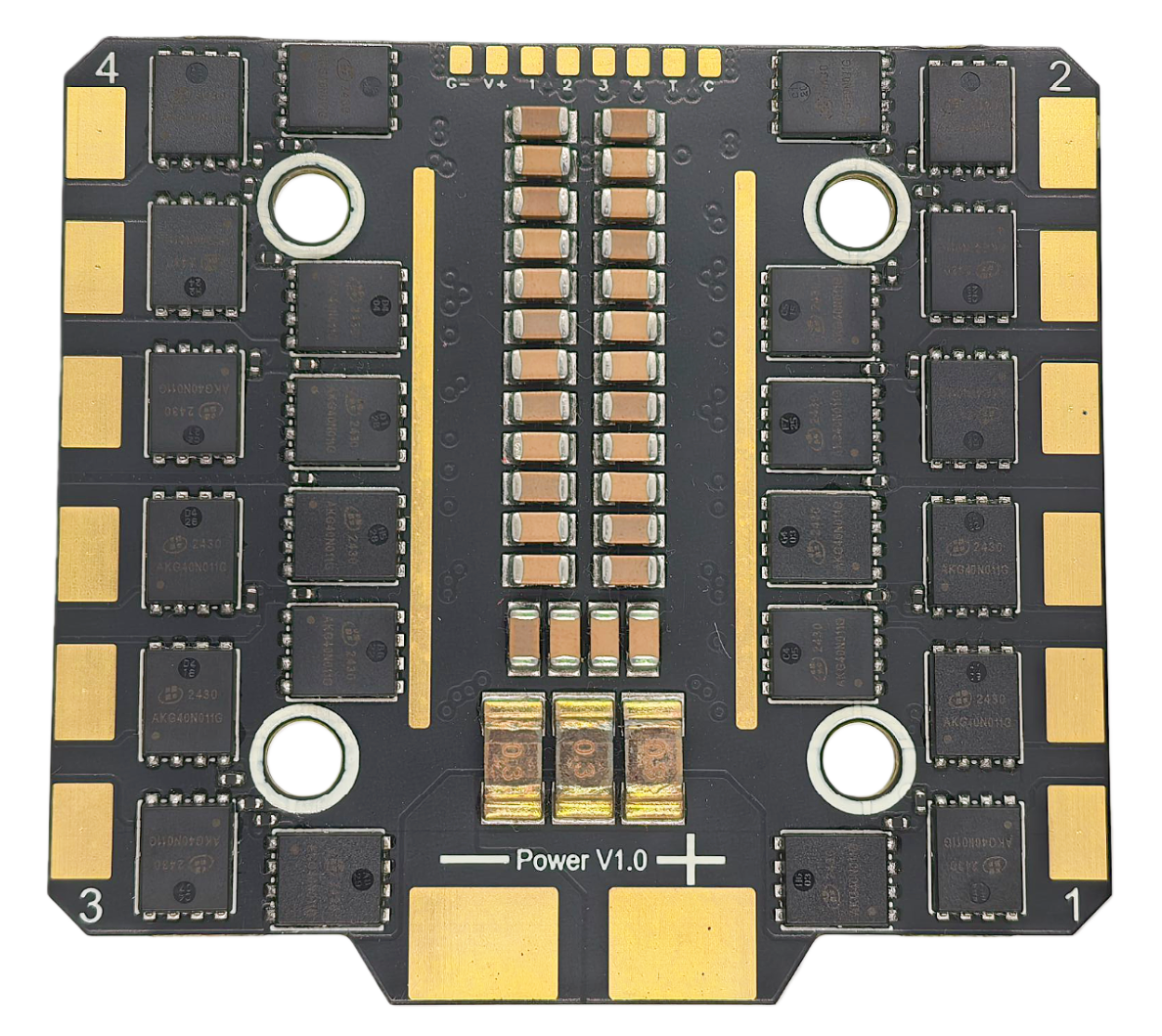

ESCparameters

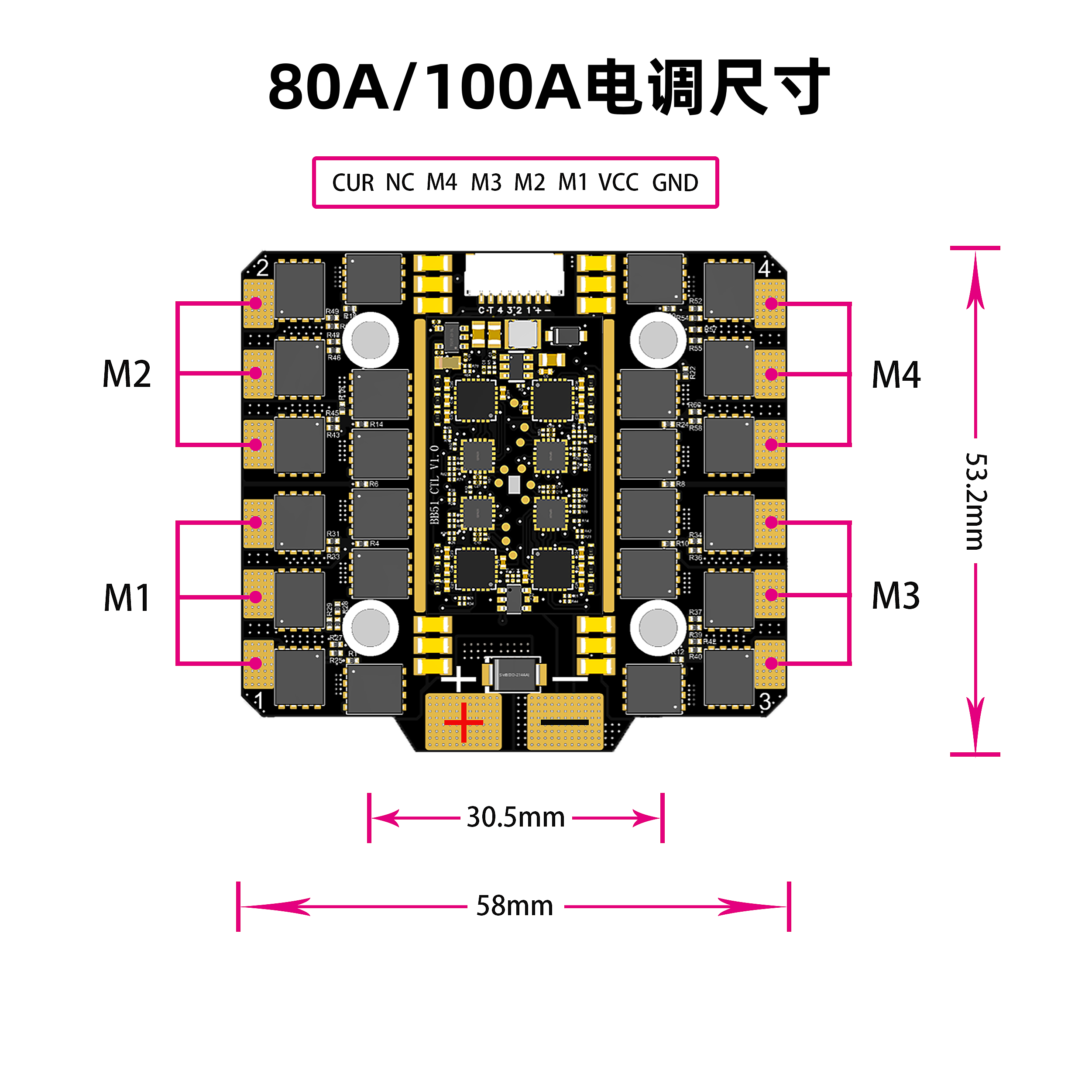

ESCsize:58mm*52.2*6.4mm
ESCNetWeight:30g
Fixed hole spacing:30.5mm-30.5mm &4mm
Continuous Current: 80A
Maximum Current::90A
Input Voltage:3-8S
Current Ratio:100
Firmware:BLHeli_S E_X_40
Assistant software:BLHeliSuite16.7.14.9.0.3
Drive signalsupport:PWM,Oneshot125,
Oneshot42,Multishot,Dshot150, Dshot300, Dshot600

Accessories list:(M3x25mm screw)*4,M3 Nylon Nut*4,Capacitance(35V1000UF)*1,M3 Red Shock AbsorbingBall*8,8P line*1,XT60 power cord*1,CRSF Receiver 4P Cable*1,4P to 6P VTX Cable*1,GPs 6PCable*1,DJl6P Cable*1, Camera 3p lines*2,Buzzer/LED 4P line*1.
