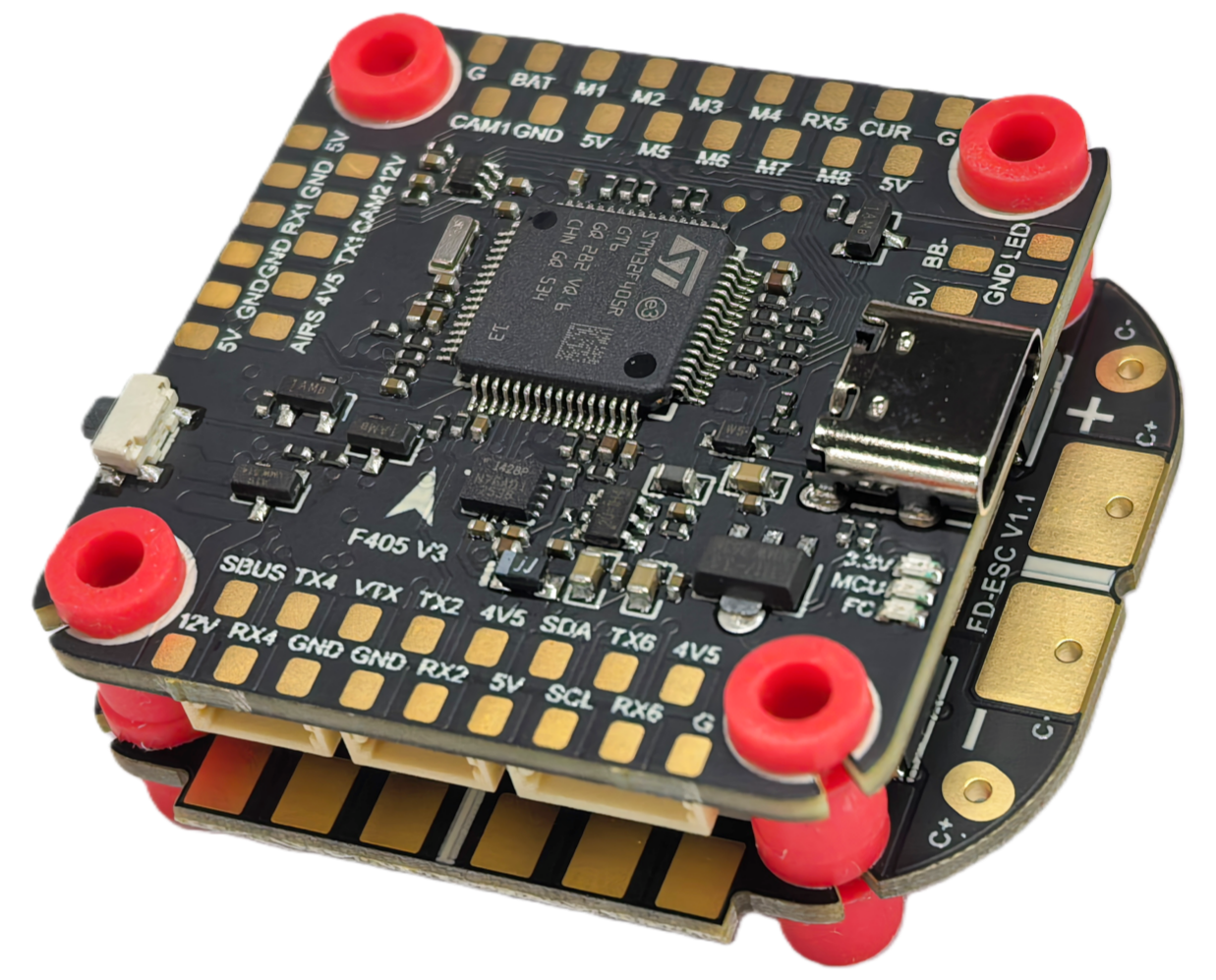

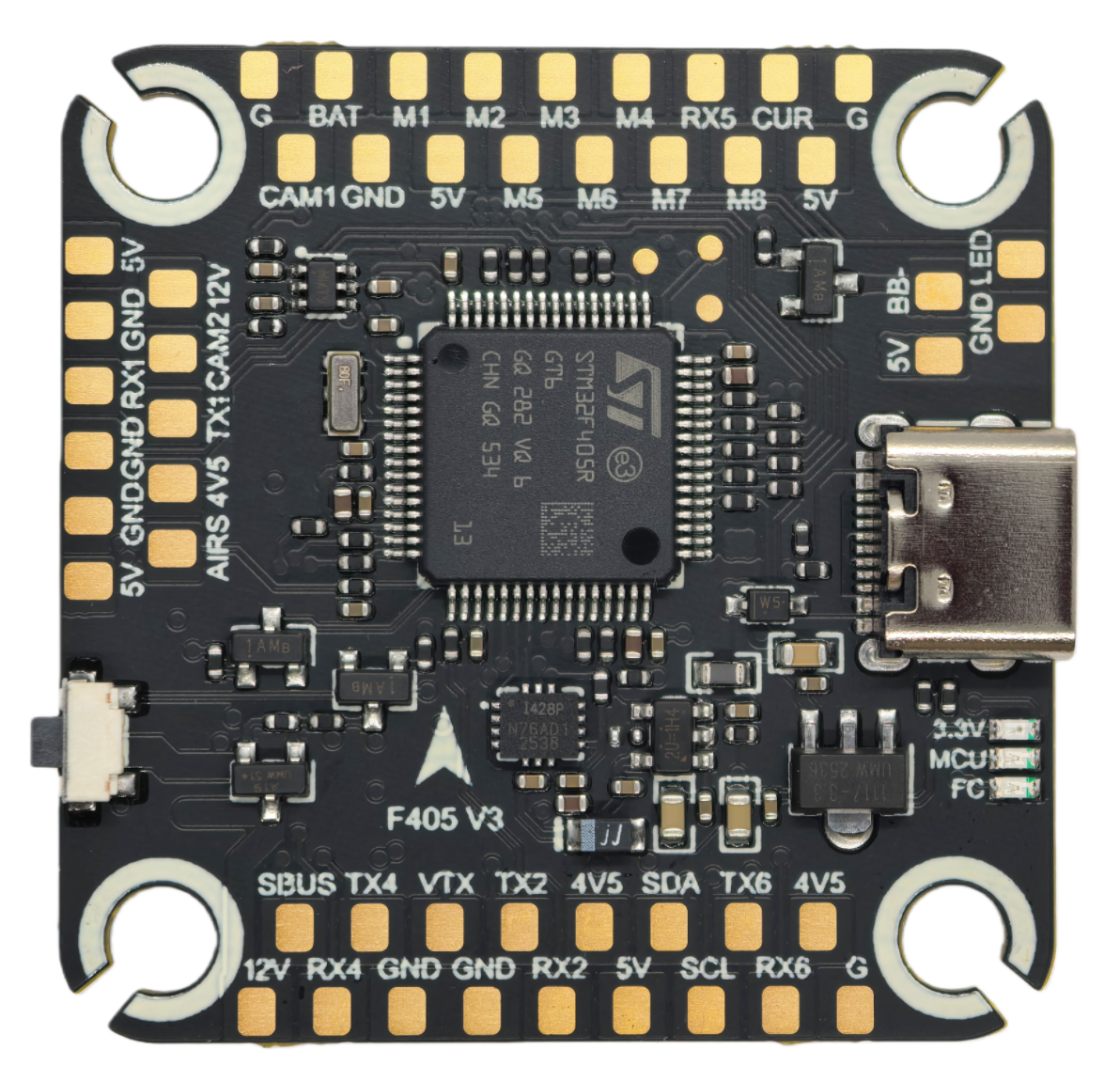

Flight control parameters
Flight control dimensions: 39.8 * 38.7 * 8mm.
Net weight of flight controller: 10g
Mounting hole spacing: 30.5 * 30.5mm p4mm
MCU:STM32F722RET6 405RGT6
Firmware:YunTu F722V3 / F405V3
IMU(Gyro):ICM42688P
Barometer: SPL06
OSD:AT7456E
BEC:4.5V/1A; 5V/2.5A/12V2.5A
Black box: Storage:16M
Input voltage:3-8S LiPo
Uartserial port: 6
Type: Type-C
HD/analog image transmission: Support
Lanterns: Support
Buzzer: Support
GPS: Support
Receiver: ELRS/CRSF/SBUS/Frsky/Futaba
/Flysky/TBS Crossfre/DSMX
Supported Flight Controller Firmware: BetaFlight (Default),INAV,APM

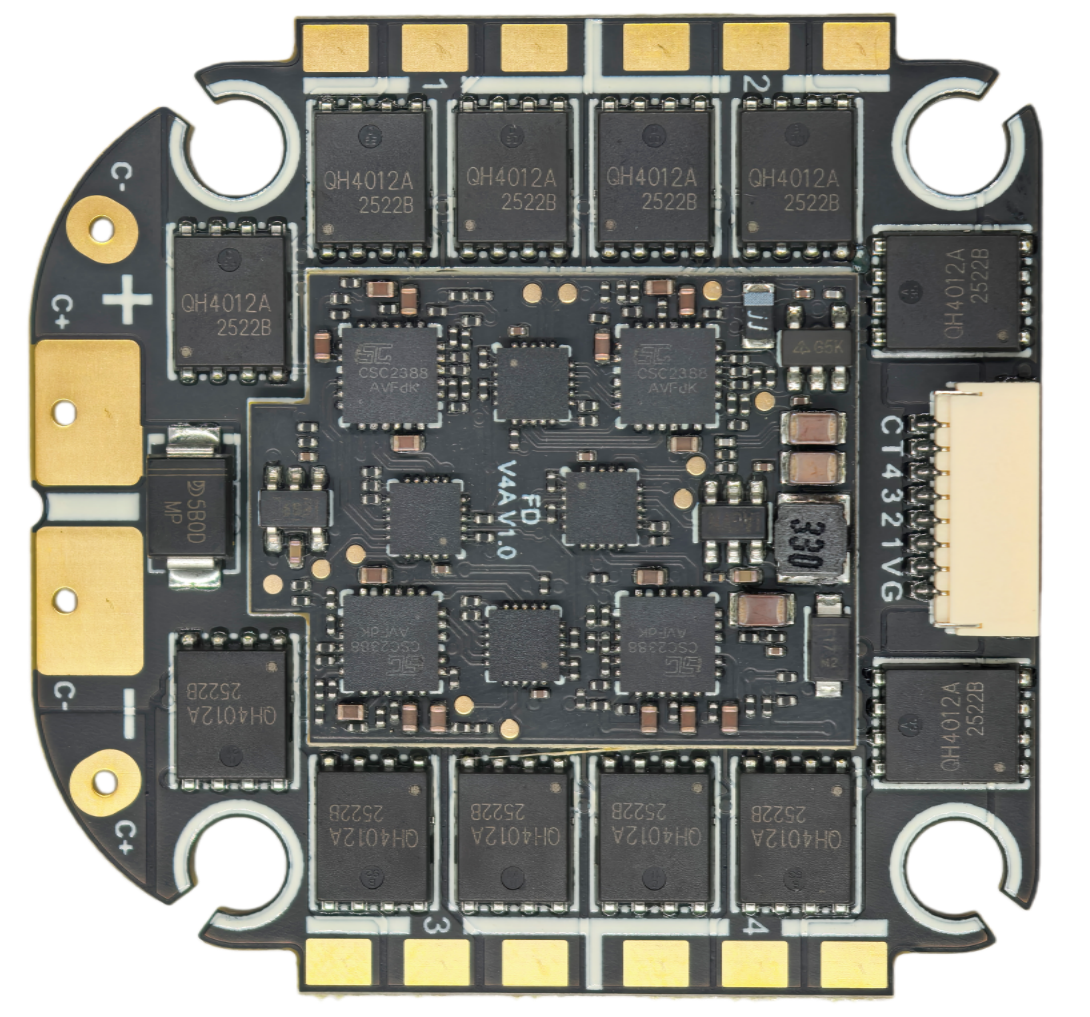

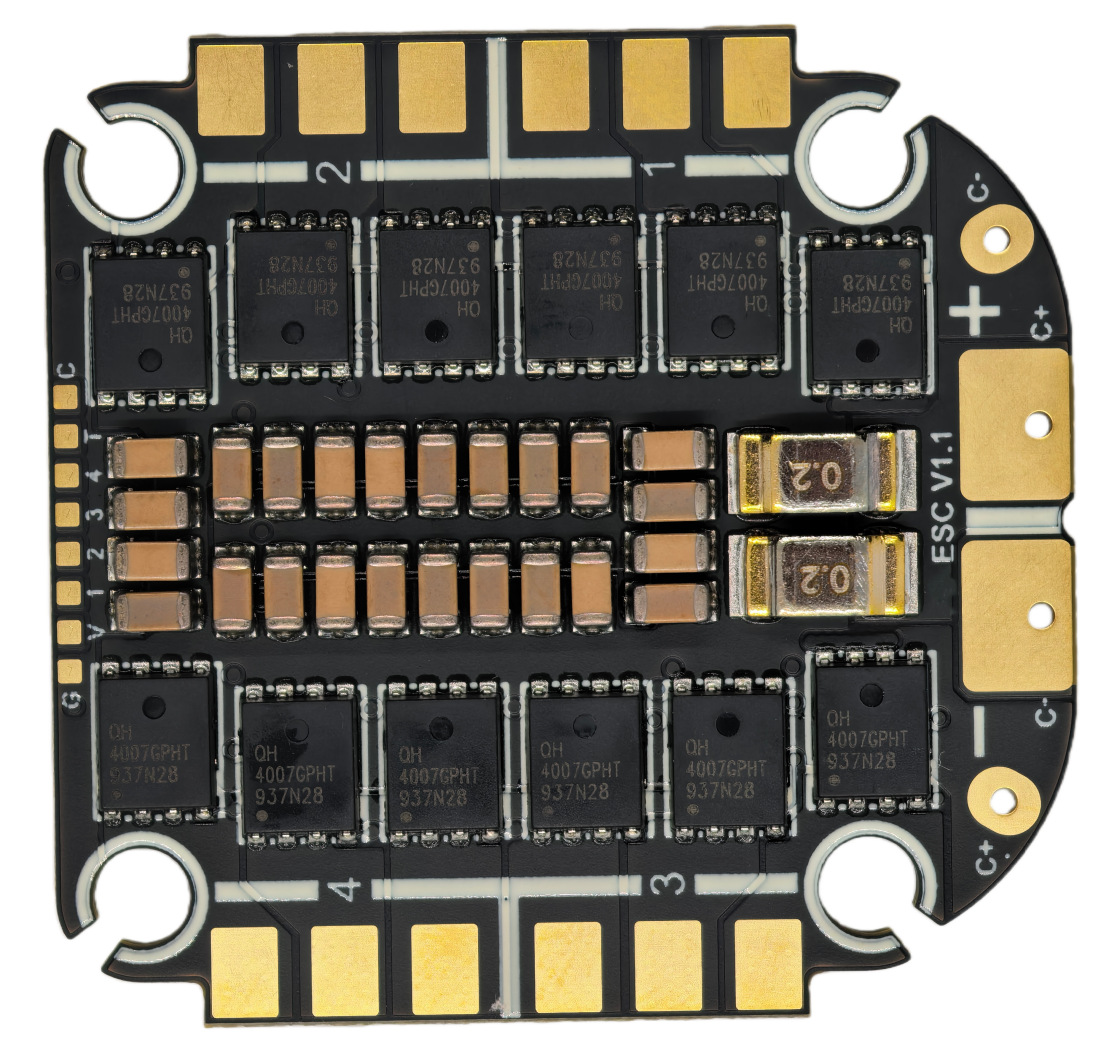

ESCparameters
MCU:EFM8BB51F16G
GateDriver:JSC1801/JSC6288/FD6288
ESCsize:45.5mm*41.5*6.4mm
ESCNetWeight:15g
Fixed hole spacing:30.5mm-30.5mm &4mm
Continuous Current: 60A
Maximum Current::70A(sustainable for 10S)
Input Voltage:3-8S LiPo
Current Ratio:100
Firmware:BLHeli_S E_X_40（Factory default），Bluejay E_X_40
Drive signalsupport:PWM,Oneshot125
Oneshot42,Multishot,Dshot150, Dshot300, Dshot600
Accessories list:(M3x25mm screw)*4,M3 Nylon Nut*4,Capacitance(35V1000UF)*1,M3 Red Shock AbsorbingBall*8,8P line*1,XT60 power cord*1,CRSF Receiver 4P Cable*1,4P to 6P VTX Cable*1,GPs 6PCable*1,DJl6P Cable*1, Camera 3p lines*2,Buzzer/LED 4P line*1.
