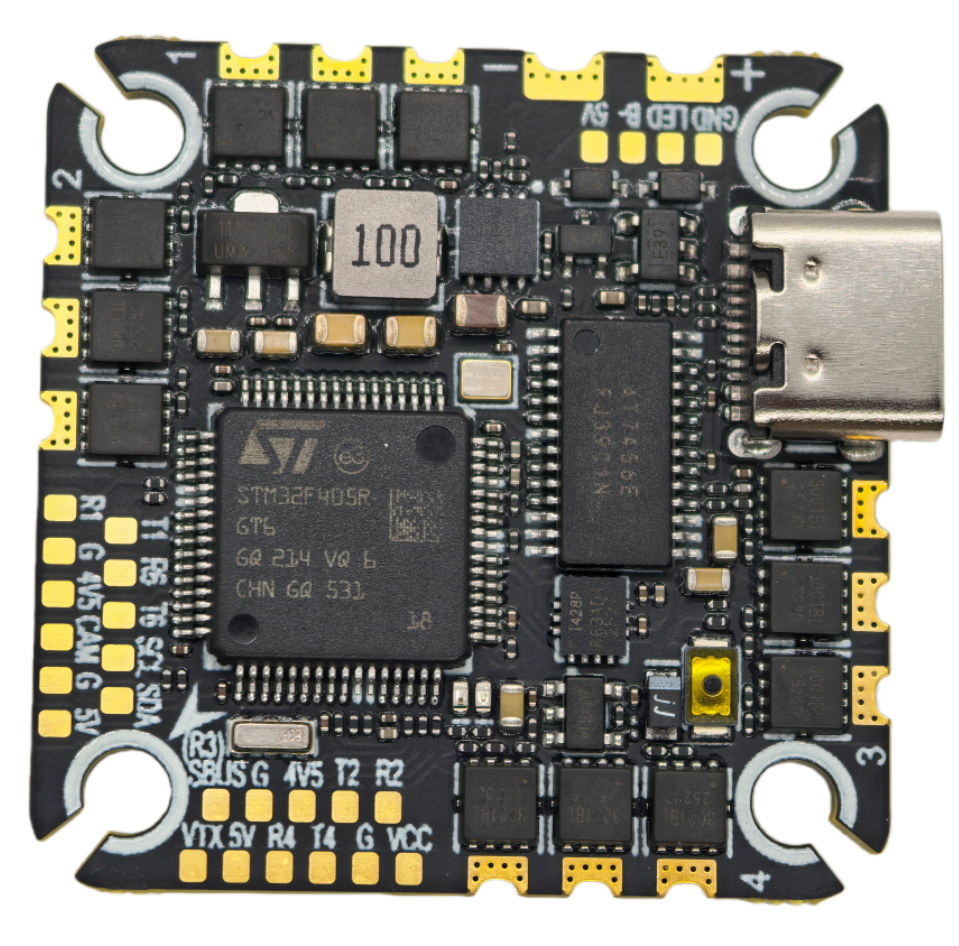

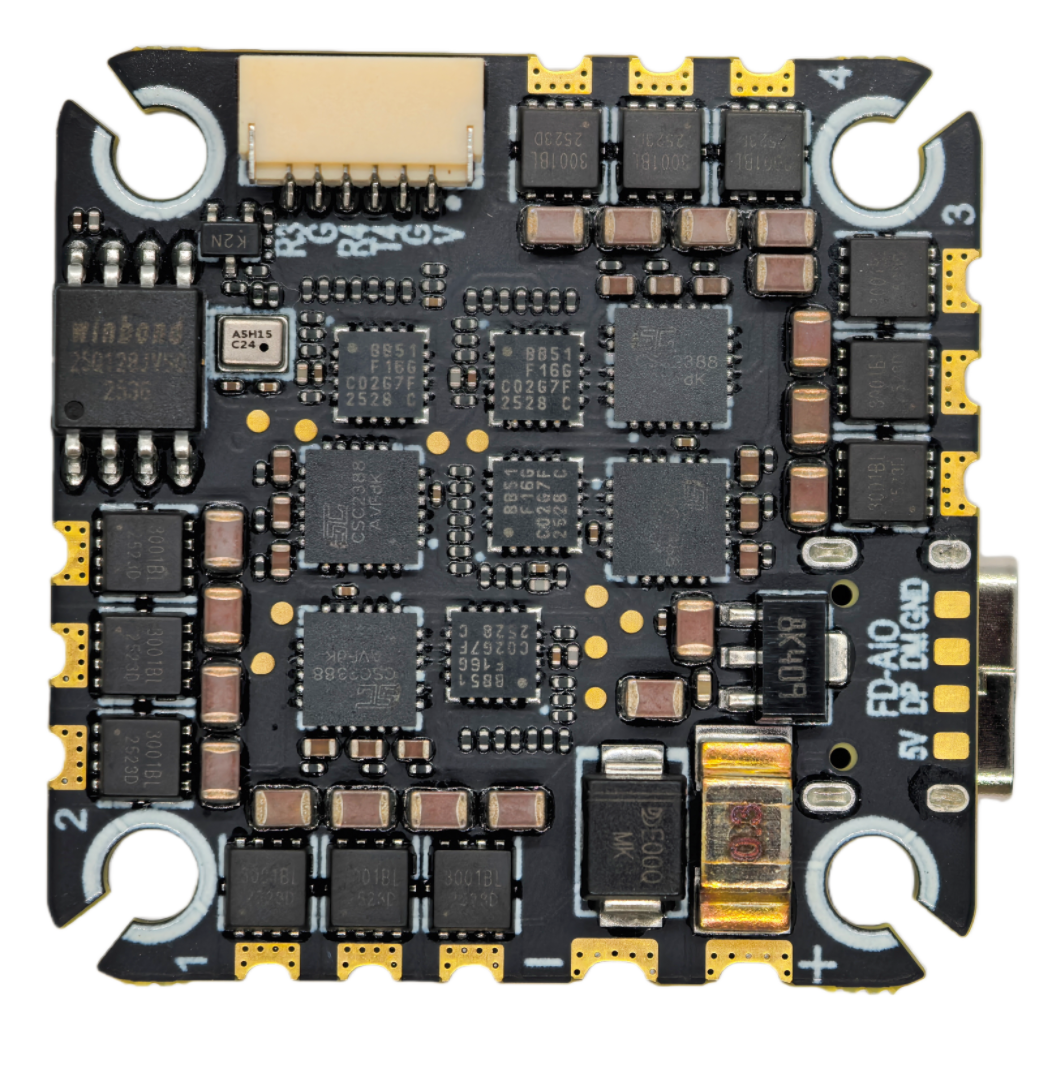

AIO Flight Controller
Dimensions: 34.5 * 33 * 7mm.
Net weight : 15g
Mounting hole spacing: 25.5 * 25.5mm p4mm
MCU:STM32F722RET6 405RGT6 411RET6
IMU(Gyro):ICM42688P
Barometer: SPL06
BEC:4.5V/1A; 5V/2A
Black box: Storage:16M
Input voltage:3-6S
Uartserial port: 4
Type: Type-C
HD/analog image transmission: Support
Lanterns: Support
Buzzer: Support
GPS: Support
Receiver: ELRS/CRSF/SBUS/Frsky/Futaba
/Flysky/TBS Crossfre/DSMX
Product features
1.The PCB adopts high-end 8-layer 2oZ thick copper skin, high-end resin plug-hole PCB production technology, dual-pad design, strong overcurrent resistance and good heat dissipation.
2.MOS adopts 40V high current resistance mos, long life and strong load capacity.
3.Adopts industrial-grade LDO, resistant to high temperature，
4.Using high-quality Japanese Murata capacitors, strong filtering performance
Accessories list:(M3x25mm screw)*4,M3 Nylon Nut*4,Capacitance(35V1470UF)*1,M3 Red Shock AbsorbingBall*8,8P line*1,XT60 power cord*1,CRSF Receiver 4P Cable*1,4P to 6P VTX Cable*1,GPs 6PCable*1,DJl6P Cable*1, Camera 3p lines*2,Buzzer/LED 4P line*1.
