FPV Quadcopter Shaking on Punch-Outs? Stop Blindly Tuning and Fix Your PID Flow in 10 Minutes

Nothing beats the rush of strapping on your FPV goggles, throttling up, and diving a concrete structure. But if your maiden flight feels loose, washes out during sharp pull-outs, or develops a high-frequency desync oscillation, you can't just copy a pro pilot's preset rates.

By systematically micro-tuning 5 core parameters on your FPV flight controller, you can eliminate prop wash and locked-in mid-throttle wobbles for good.

MANDATORY HARDWARE CHECK: Before diving into Betaflight or your GCS, ensure your carbon fiber frame has zero arm flex, motor bells spin smoothly with zero bearing play, props are crisp, and your 4-in-1 ESC is fully calibrated. Tuning PID parameters on loose hardware is a recipe for a burnt motor or a mid-air desync.

1. Top 5 FPV Flight Instabilities & Diagnostics

Instantly diagnose your quad's flight characteristics through your FPV feed or HD camera footage without endless guessing games:

Flight Symptom	Technical Root Cause	Targeted Parameter & Micro-Adjustment
High-Frequency "Buzzing" Sound or Micro-Vibrations	Rate P-gain is too high; the motor loops are over-correcting.	Lower Gyro/PID Roll & Pitch P-Gain by 10% increments.
Spring-like "Bounce-Back" After Snappy Rolls/Flips	D-gain is too low; insufficient braking authority to stop the rotation.	Incrementally increase Roll & Pitch D-Gain by 3–5 units.
Sluggish Tracking / Mushy Stick Feel During Freestyle	Rate P-gain is too low; the drone feels heavy and unresponsive.	Increase Roll & Pitch P-Gain by 10% to crisp up the tracking.
Prop Wash Wobbles During Aggressive Split-S or Dives	Insufficient D-gain damping or inadequate Throttle PID Attenuation.	Turn up the D-gain slider or optimize your TPA (Throttle PID Attenuation).
Wandering Heading / Yaw Drifting on Hard Punch-outs	Yaw I-gain or Anti-Gravity gain is too low to fight sudden voltage sags.	Boost your Yaw I-Gain or increase the Anti-Gravity Multiplier to 3.0+.

2. The 5-Step FPV Fine-Tuning SOP

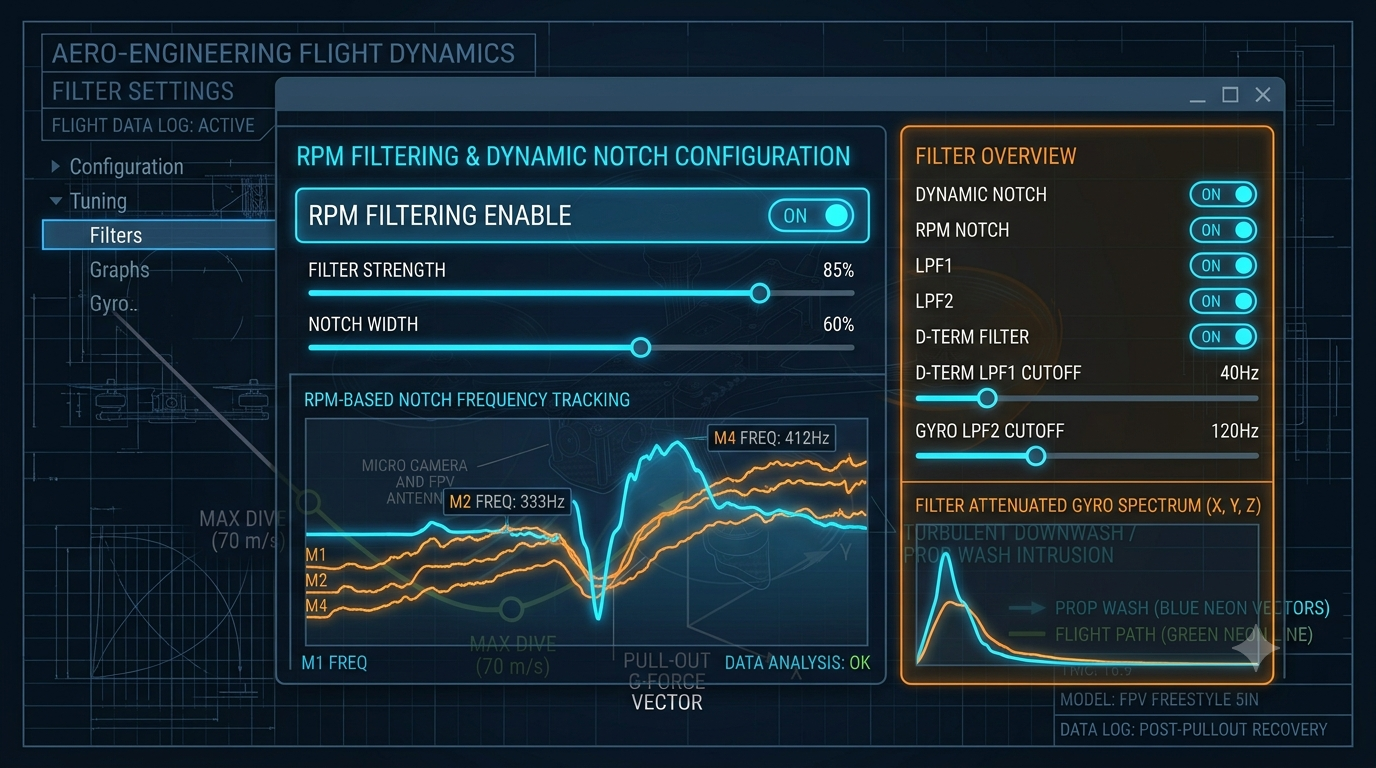

Step 1: Lock in Your Base Filtering & Dynamic Notches

Do not start tuning PID values with dirty gyro data. Modern FPV firmware depends on clean signals.

• Ensure RPM Filtering is enabled (requires Bidirectional DSHOT configured with matching motor pole counts).

• Set your dynamic slider filters to default before optimization. Clean filtering allows you to push P & D gains higher without overheating your motors.



  Step 2: Push P-Gains for Razor-Sharp Stick Tracking

  P-gain dictates how aggressively your quad sticks to your transmitter rates.

  • Fly in an open space. Perform quick, snappy roll and pitch inputs.

  • If you hear a high-pitched oscillating "singing" sound from the motors at high throttle, your P-gain has crossed the threshold. Back it off by 5–10% until the noise completely disappears.



  Step 3: Dial in D-Gain to Stop the Bounce-Back

  D-gain acts as the suspension shock absorber for your FPV quad.

  • Execute a rapid 360-degree flip or roll and release the stick instantly back to center.

  • Watch your FPV feed carefully. If the horizon bounces or over-corrects when the rotation stops, increase Roll/Pitch D-Gain by 3 units at a time.

  • Safety Threshold: Land after 1 minute of tuning and touch your motors. If they are hot to the touch, your D-gain is too high or your filters are too weak. Back off immediately.



  Step 4: Stabilize Position Holding with I-Gain & Anti-Gravity

  I-gain handles external forces like wind resistance and center-of-gravity offsets.

  • Fly straight at a 45-degree pitch. Release the right stick. If the nose drops or slowly wanders off course, raise your I-Gain by 0.05 steps.

  • If your quad dips its nose specifically during rapid throttle punches (0% to 100% throttle bursts), your Anti-Gravity Gain needs to be increased. This prevents I-gain windup during heavy battery sag.



  Step 5: Squash Prop Wash with TPA & Feedforward Adjustments

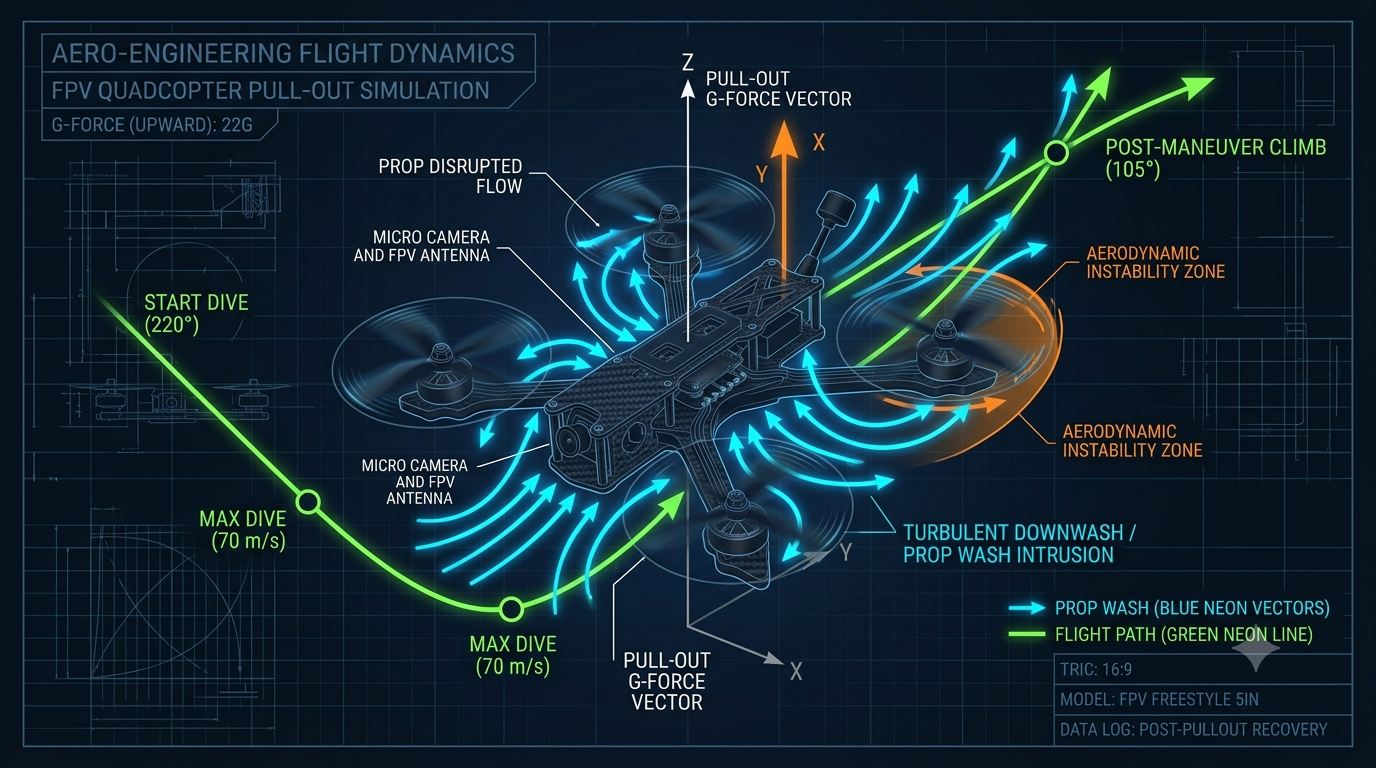

  Prop wash occurs when your FPV drone slides through its own turbulent downwash (e.g., pulling out of a vertical dive).

  • If your quad jitters at full throttle but is smooth at half throttle, configure your TPA Threshold to kick in at around 1350–1400us throttle.

  • TPA automatically attenuates (lowers) your P and D values at high throttle positions where the props have maximum bite, preventing high-frequency oscillations.

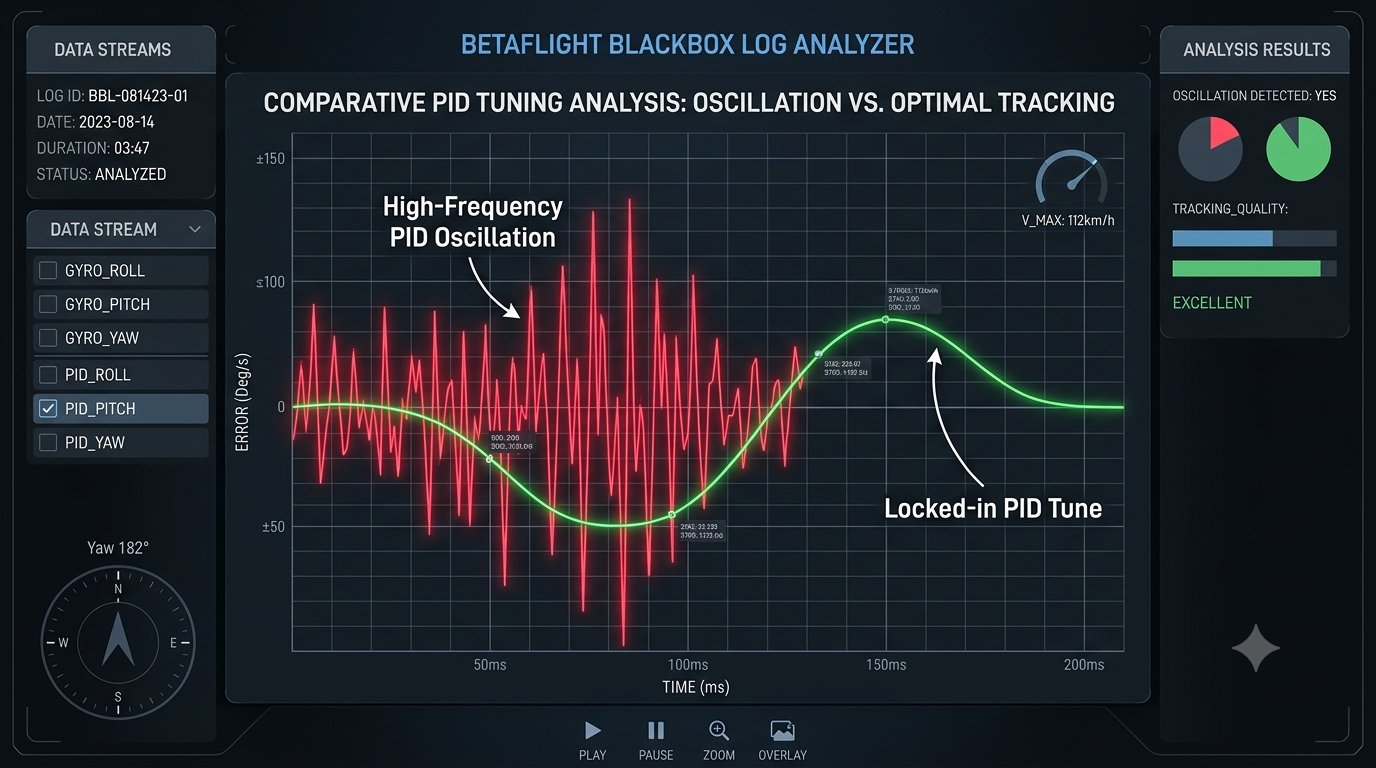

3. High-Performance FPV Tuning Logs

Use this template to record your tuning sessions. This is highly recommended when trying new prop pitches or jumping from a 4S to a 6S battery configuration.

Session #	Component/Parameter Modified	Starting Baseline	Optimized Value	Flight Feel & Blackbox Observations
Test 01	Roll Rate P-Gain	45	52	Snappier stick response; zero high-frequency vibrations on punch-outs.
Test 02	Pitch Rate D-Gain	32	37

4. Crucial Safety Protocols for FPV Tuning

• Always Check Motor Temps: High PID gains or bad filter settings can fry an ESC or melt motor windings within seconds. Land and check motor temperatures frequently.

• The "One Variable" Rule: Change only one value at a time (e.g., fix Roll D before touching Pitch D). Changing multiple variables makes it impossible to pinpoint what fixed the wobble.

• Tune on Fresh Packs: Battery sag directly changes flight dynamics. Do not tune your core PID values on a battery sagging below 3.5V per cell (for LiPo packs).

• Prepare a Disarm Switch: If your quad encounters a severe PID desync or mid-air runaway ("flyaway"), do not attempt to fly out of it. Instantly hit your Disarm Switch to cut motor power safely.
